A powerful, compact
amplifier which has the highest power to weight ratio of any on
the market. The first of our digital power amplifier series using
our revolutionary technology, the D-TECH
series also has the longest proven track
record, and even now
is still widely in use and popular among major concert promoters
and nightclubs.
The
D-TECH amplifier is
optimally designed for a 4 ohms load, but is also capable of
driving a 2.66 ohms load. It has
very high headroom for its
one unit size and weight. The reliability
of this amplifier has been long proven,
and forms the foundation of the series which were to follow. |
D-TECH 1200
D-TECH 2400
D-TECH 3600
|
D-TECH
SERIES is a type of digital switch-mode power amplification design that is
highly advanced and delivers a tremendous amount of power and very clear
sound in a very small size. The
D-TECH
digital
power amplifier can deliver several times more
power than other amplifiers
of the same size and weight. It also sounds
better, and is more reliable.
D-TECH is small, compact
and highly portable, which is ideal for touring. It is also easy to
install at discos, where it makes efficient use of small spaces and has
been proven to last for many years. Its performance, including a highly
reliable power switching supply, beats the rest and has resulted
in disco owners replacing large banks of conventional amplifiers with
just a few D-TECH power amplifiers, which can better their sound
and outlast them by years. The D-TECH amplifier is highly
user-friendly, and easy to install and use.
|
 |
stable output up to 2.66 ohms
The
D-TECH
digital power amplifier maintains output
voltage at stable levels, even when up to three speakers are added per
channel. This
control feature sets it apart from conventional amplifiers, which
start reducing output voltage well before overloading point has been
reached, providing high damping factor even when clipping.
|
 |
This is rarely achieved with an amplifier so light ,
small and reliable at the same time.

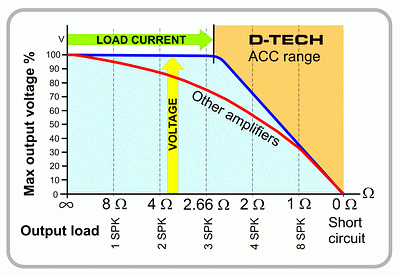

The graph on
the left shows that maximal output voltage remains at a constant
level until a pre-set point is reached, regardless of how great
is the speaker load.
Compare that to
conventional analog amplifiers, which start
decreasing maximal output voltage straight away, as soon as any load is
connected.
Using
the D-TECH
digital power amplifier, you can even add three speakers to each channel
without noticing any reduction in sound quality. The amplifier will
increase power accordingly, but with no reduction in output voltage.
This is achieved thanks to a highly stable power supply that matches
perfectly the digital behavior of the amplifier. |
After a pre-set overloading
point is reached, D-TECH’s automatic
current control
mechanism (ACC) comes into effect, to limit output current
automatically. This provides absolute protection in the event of
overloading or short circuit, which
conventional power amplifiers cannot match, as well
as being protected against high frequency oscillations.
highly
ADVANCED protection system
The
D-TECH SERIES
contains the full range of protection features to prevent
against
high-frequency oscillation, short-circuiting, current overloads, sudden
power surges, and overheating.
We
safeguard against every possible risk.
For
more information about our protection technology,
see here.
|
D-TECH 1200 |
|
D-TECH 2400 |
|
D-TECH 3600 |
|
2 ohm
Dual (per ch.) |
480
W rms. |
|
4
ohm Dual (per ch.) |
580
W rms. |
|
8 ohm
Dual (per ch.) |
310
W rms. |
|
4 ohm
Bridge-Mono |
960
W rms. |
|
8
ohm Bridge-Mono |
1160 W rms. |
|
16
ohm Bridge-Mono |
620
W rms. |
|
|
|
2 ohm
Dual (per ch.) |
1350 W rms. |
|
4
ohm Dual (per ch.) |
980
W rms. |
|
8 ohm
Dual (per ch.) |
520
W rms. |
|
4 ohm
Bridge-Mono |
2700 W rms. |
|
8
ohm Bridge-Mono |
1960 W rms. |
|
16
ohm Bridge-Mono |
1040 W rms. |
|
|
|
2 ohm
Dual (per ch.) |
2000 W rms. |
|
4 ohm Dual (per ch.) |
1800 W rms. |
|
8 ohm
Dual (per ch.) |
950
W rms. |
|
4 ohm
Bridge-Mono |
4000 W rms. |
|
8
ohm Bridge-Mono |
3600 W rms. |
|
16
ohm Bridge-Mono |
1900 W rms. |
|
