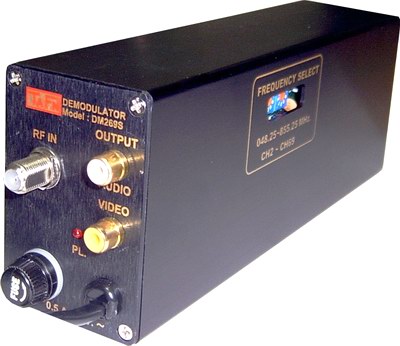

The DM-269S is a agile TV demodulator in the whole TV band. Is ideally suited for MATV head-end channel reception. It features a high stability synthesized controlled by microprocessor.

 CH-2 to CH-69 (48.25 to 855.25 MHz)

  1 MHz tuning steps
  PLL Synthesized Channel control
  Compact design

Frequency range

CH-2 to CH-69 (48.25 to 855.25 MHz)

Frequency setting

1 MHz steps

Frequency control

PLL synthetizer

Operating voltage

210V - 240V  50/60 Hz

Size

210(L) x 77(H) x 51(W) mm

Weight

920 g
