catv head end Equipment

CH Converter

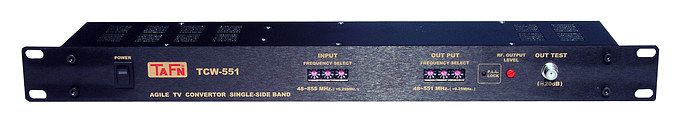

TCW-551   Agile TV Channel converter single side band

The TCW-551 is a agile TV CH converter capable of converting any channel from the whole TV band (47- 855 MHz) to any channel from 47 to 551 MHz single side band for adjacent channel operation. Is ideally suited for CATV head-end and MATV as well. It features a high stability synthesized controlled by microprocessor.

  Adjacent channel capability
  Input from 47 to 855 at 1 MHz steps
  Low Spurious an harmonics
  PLL Synthesized Channel control
  SAW Filter for accurate side band response
  Low out-of-band noise for multiple installation
  AGC input to maintain stable output level

 Specifications

Input frequency range

Agile from 48.25 to 855.25 MHz  (1MHz steps)

Output frequency range

Agile from 48.25 to 551.25 MHz  (1MHz steps)

Frequency control

PLL synthetizer

Spurious and harmonics

60 dB below  Video carrier

Input level range

72 - 95 dBuV  (AGC)

Max Output level

100 dBuV

RF output level range

20 dB continuously adjustable

RF output return loss

16 dB Min.

Operating voltage

120V - 240V  50/60 Hz

Size

19" rack mount  482(L) x 50(H) x 145(W) mm (1U)

Weight

1.6 Kg
