catv head end Equipment

Audio Equalizer

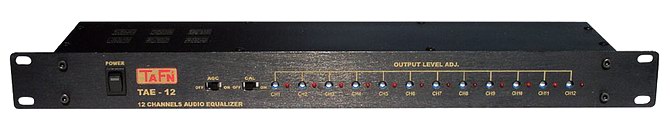

TAE-12   12 Channels audio equalizer

The TAE-12 is 12 channels audio AGC to set the audio level from a several CATV head-end modulators to the same level. is ideally suited when the audio source level is unstable such a different video movies.

  Very high dynamic AGC range
  12 channels
  LED indicator for easy level adjust
  Internal pilot signal for calibration
  Very low distortion

 Specifications

AGC dynamic range

37 dB

Pilot signal

1 KHz

Audio frequency range

10 Hz to 25 KHz

Audio input impedance

10KOhm

Operating voltage

220V  (210 to 240V)

Size

19" rack mount  480 x 50 x 180 mm (1U)

Weight

1.8 Kg
